Rittal offers a wide range of enclosures including wall-mounted, floor-standing, and modular enclosures. These are designed to protect electrical and electronic components in harsh environments, ensuring reliable operation and longevity of equipment.

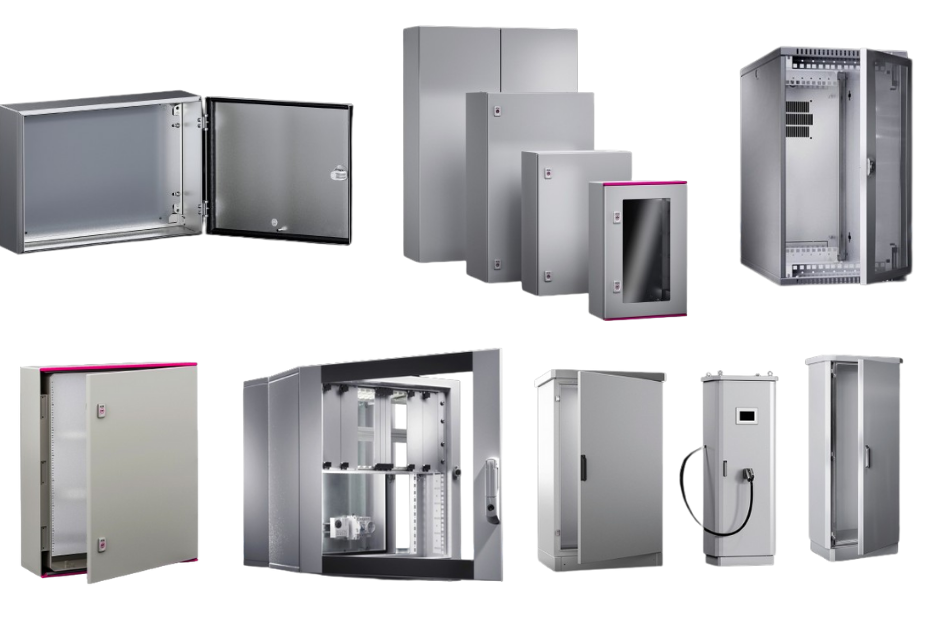

Small enclosures in a wide range of variants:
Polycarbonate enclosures PK, aluminium enclosures GA, small enclosures KX, sheet steel in versions with or without gland plate, e-boxes and bus enclosures. The wall-mounted enclosures comply with maximum standards for the protection of electrical components in small controller applications. Protection category up to IP66.
Polycarbonate Enclosures PK :
Wall-mounted enclosure of fibreglass-reinforced polycarbonate with either grey or transparent cover. Protection category IP 66. Covers feature quick-release fasteners for speedy maintenance. Self-extinguishing material for safety.
Terminal Boxes KL :
Wall-mounted enclosure with cover made from sheet steel or stainless steel, available in versions with gland plate (protection category IP55), and without gland plate (protection category IP66). Effortless wall-mounting thanks to rear panel with holes. Maximum flexibility with cable entry. Safe PE conductor connection from enclosure to cover.
Terminal box KX Stainless steel :
The stainless steel terminal box KX delivers maximum data quality and consistency of engineering while ensuring flexibility and reliability across a wide range of applications.
E-Box EB :
Wall-mounted enclosure with door and mounting plate of sheet steel. Protection category IP 66. With 180° hinge. Lock insert may also be exchanged for individual lock systems.
E-Box KX Stainless steel :
The stainless steel E-Box KX provides user-friendly assembly as well as flexibility when choosing your lock system. The 180° hinges supplied as standard provide excellent accessibility to the enclosure interior.
Bus Enclosures BG :
Stainless steel bus enclosures 1.4301 (AISI 304), incl. 180° hinge. Protection category IP 66.
Bus enclosures KX, sheet steel, with mini cam lock :
Wall-mounted enclosure made from sheet steel, with cover and viewing panel. Protection category IP 65/NEMA 12. For installing most brands of bus modules and sensors.
Bus enclosures KX Stainless steel :
The stainless steel bus enclosure KX offers excellent accessibility with 180° hinges as standard, plus a high protection category of IP 66.
Compact enclosures AE :
Enclosure with door of sheet steel, spray-finished with mounting plate and gland plate in the base Protection category up to IP 66. Also available in Stainless Steel including mounting plate.
Compact enclosure AX :
System perfection. The new compact enclosure AX provides maximum data quality and seamless engineering, plus safe, flexible assembly and interior installation.
Wall-mounted enclosures EL :
3-part wall-mounted enclosure with 482.6 mm (19") mounting level and designer glazed door. The vertically hinged desk unit provides optimum access to the installed components from the front and rear. The wall-mounting part allows cable entry from above or below.
VX SE free-standing enclosure system :
Free-standing sheet steel enclosure with stable enclosure body, two integral mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. VX SE may be system-compatibly extended using VX25 accessories. Enclosure widths from 600 to 1800 mm and enclosures with 300 mm depth for applications in facility management. Efficiency is enhanced, as the side panels no longer need to be fitted and large enclosure widths replace small bayed suites.
Plastic enclosures AX :
AX plastic enclosures, optionally with or without inspection window, are ideal for outdoor applications. Numerous mounting domes in the enclosure provide individual interior configuration options in a 25 mm pitch pattern, e.g. with punched sections and rails.
Baying systems TS 8, sheet steel :
TS 8 baying enclosure systems – the system platform for almost every application. In conjunction with system accessories, every enclosure is transformed into a specialist for particular tasks. The frame section of the TS 8 provides significant space gains plus simple interior installation. This likewise ensures bayability from all sides.
Baying systems TS 8, power distribution :
Baying systems TS 8, for low-voltage switchgear with design certificate to IEC 61 439-1/-2 and DIN EN 61 439-1/-2
X SE free-standing enclosure system :
Free-standing sheet steel enclosure with stable enclosure body, two integral mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. Fully compatible with the VX25 baying system. Enclosure widths from 600 to 1800 mm and enclosures with 300 mm depth for applications in facility management. Efficiency is enhanced, as the side panels no longer need to be fitted and large enclosure widths replace small bayed suites.
PS 4000 baying system :
Baying Systems PS 4000 with mounting plate. Protection category IP 55
Specifically designed for data centers and IT environments, these enclosures provide security, cooling, and organization for servers, network equipment, and other IT infrastructure components.
VerticalBox :
Compact 482.6 mm (19") enclosure for small networks that may be used as a wall-mounted, under-desk or desktop enclosure.
FlatBox :
Flat-packed enclosure. For optimum access and flexible use as a wall-mounted or floor-standing enclosure.
QuickBox :
Wall-mounted enclosure with optimum use of the interior space thanks to removable cover. Status monitoring via viewing window.
Wall-mounted enclosures AE :
Wall-mounted enclosure for small networks with a high protection category.
Wall-Mount Network Enclosure with glazed door, with 482.6 mm (19") mounting angles :
Pre-configured Wall-mounted enclosure for small networks
Small fibre-optic distributor :
Small fibre-optic distributor of fibre-glass reinforced polycarbonate with mounting plate and PG cable glands. Protection category IP 66.
* Customization and Service:
Rittal provides customization options to tailor products to specific customer requirements, ensuring optimal fit and functionality.
They also offer comprehensive service and support including installation, maintenance, and training to maximize the performance and lifespan of their products.
Rittal's products are trusted globally across industries including manufacturing, automotive, telecommunications, IT, energy, and more.
